54.6V 2A Charger for 48V Electric Scooters | GX16 3 Pin Plug | Australian Safety Certified
54.6V 2A Charger for 48V Electric Scooters | GX16 3 Pin Plug | Australian Safety Certified
In stock. Ships from QLD next business day
Couldn't load pickup availability
Free shipping on orders over $150. Not sure it fits? Send us a photo.

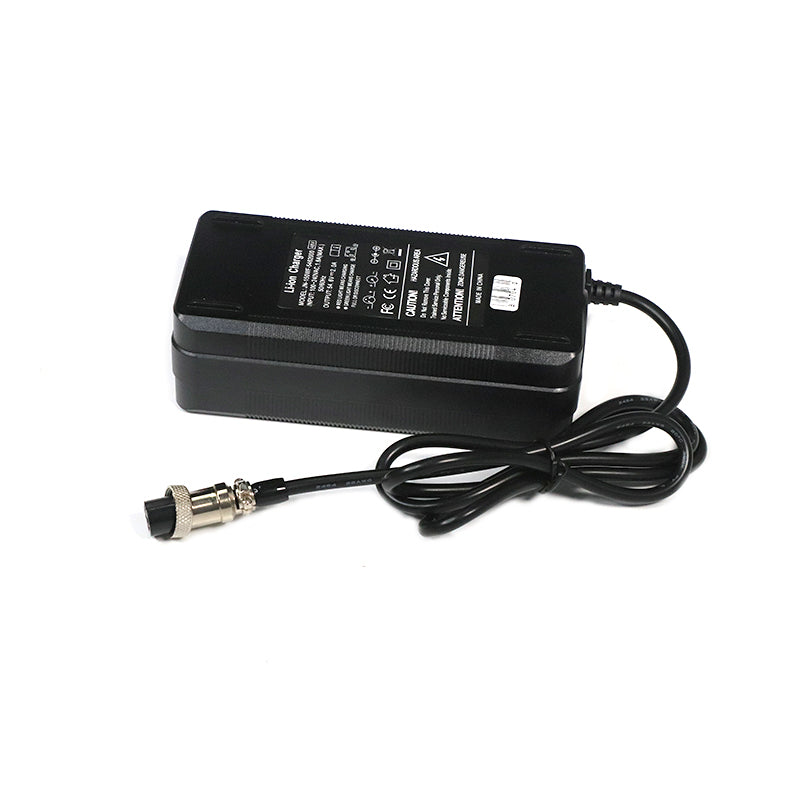

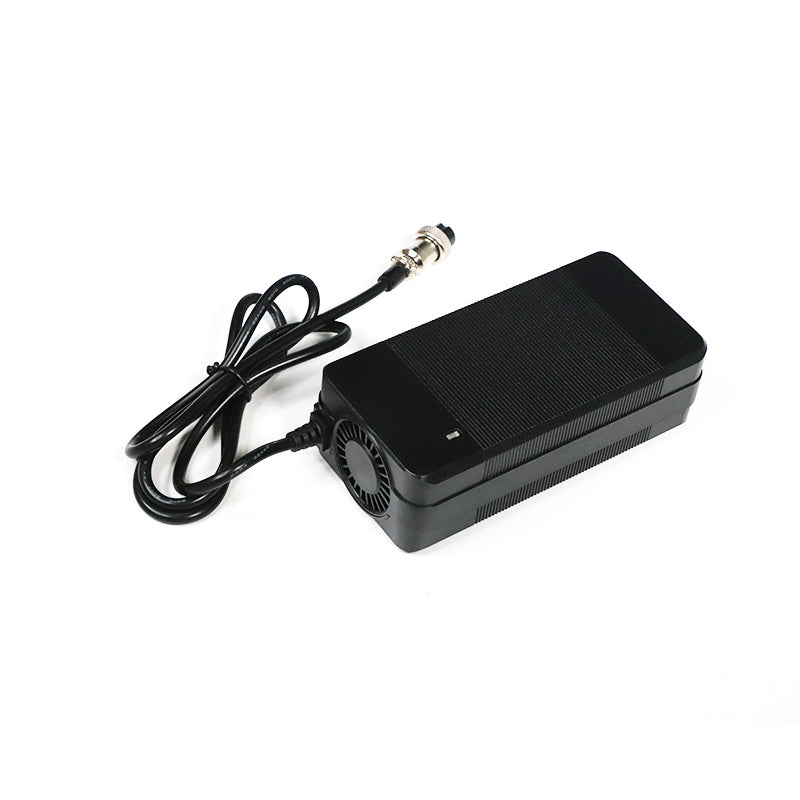

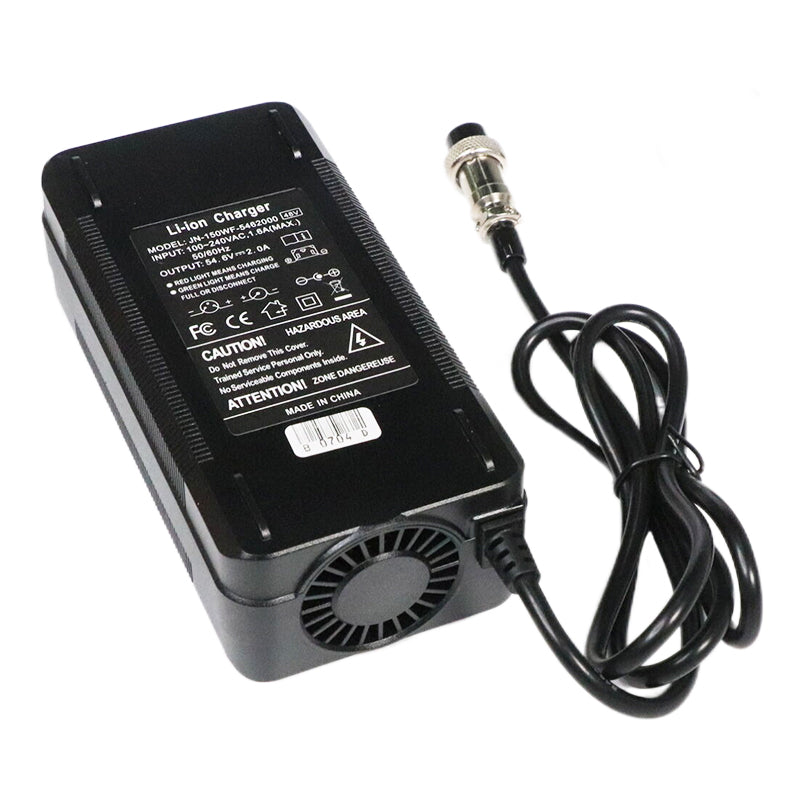

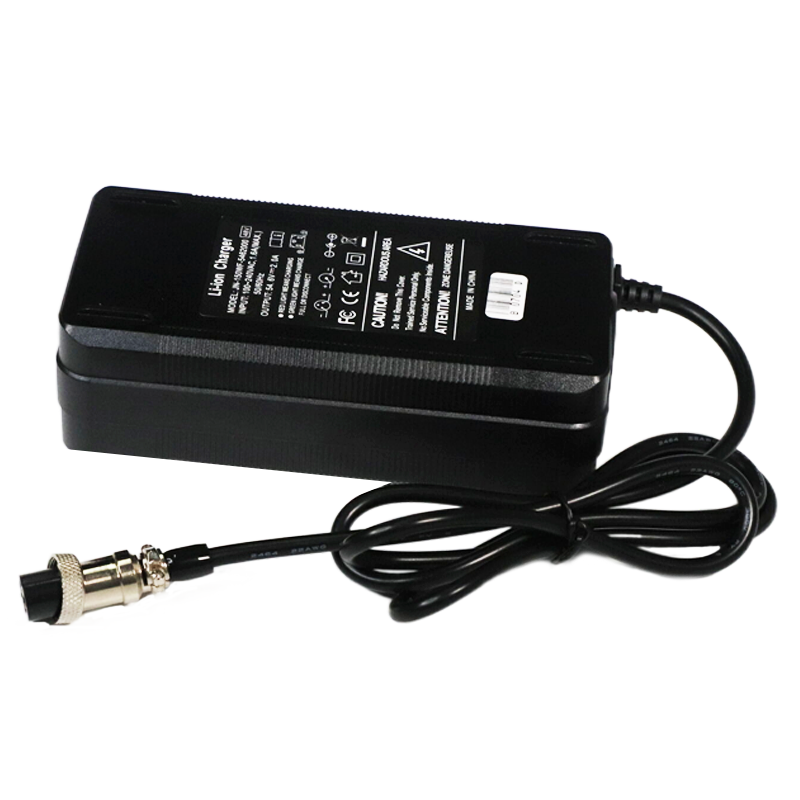

A replacement charger for 48V lithium electric scooters with a GX16 round three pin charging port. It charges at 54.6V and 2A, the correct full charge voltage for a 48V (13S) lithium battery, and comes with a detachable Australian mains lead.
Safe for Australian homes
This charger carries the RCM safety tick, the mark to look for on any charger you plug into an Australian power point.
- RCM safety tick, model number and certificate number printed on the charger label
- Certified to the Australian and New Zealand safety standard for power supplies (AS/NZS 61558)
- Double insulated (Class II) case
- Charges to 54.6V and no higher, so it won't push a 48V battery past full
- LED charge light: red while charging, green when full or not connected
- Supplied by an Australian business in Queensland, so you have a local company standing behind it
Many cheap chargers sold online have never been tested for Australian use. Look for the RCM tick before you plug any charger in.
Will it fit my scooter?
This charger suits 48V scooters whose original charger is labelled 54.6V output with a GX16 round three pin plug wired pin 1 positive, pin 3 negative (1+ 3โ). Pin 2 is not used. The pin numbers are moulded into the plug face, and the wiring diagram is printed on the charger label.
GX16 ports are not all wired the same way, so match the wiring to your original charger before plugging in. Do not use this charger on a 36V (42V), 52V (58.8V) or 60V (67.2V) scooter.
Not sure? Email us a photo of your charge port and old charger label and we'll confirm the fit before you buy.
How long will it take to charge?
At 2A, allow roughly one hour for every 2Ah of battery capacity, plus extra time at the end while the charger tops the battery off. For example, a flat 48V 13Ah battery takes around 7 to 8 hours.
Specifications
| Output | 54.6V DC, 2.0A (109.2W) |
| Battery system | 48V lithium (13S) |
| Input | 100 to 240V AC, 50/60Hz, 2.5A max |
| Mains lead | Detachable, Australian 2 pin plug to figure 8 (C7) connector |
| Scooter connector | GX16 three pin, pin 1 positive, pin 3 negative (1+ 3โ) |
| Charge light | Red when charging, green when full or disconnected |
| Insulation | Double insulated (Class II) |
| Use | Indoors only (IP20) |
| Brand and model | XVE XVE126-5460200 |
What's in the box
1 x 54.6V 2A charger with GX16 three pin output lead
1 x Detachable Australian mains lead
Safe charging
- Charge indoors on a hard, dry surface away from anything flammable. The charger is not water resistant.
- Do not charge a scooter that is wet.
- Don't cover the charger while it's working. It gets warm, which is normal.
- Unplug once the light turns green.
- Stop using the charger if the cable, plug or case is damaged.
Compliance details
| Safety mark | RCM |
| Certificate number | GMA-511068-EA (printed on the charger label) |
| Model | XVE126-5460200 |
| Standard | AS/NZS 61558.2.16 and AS/NZS 61558.1 |
| Certified by | Global-Mark Pty Ltd |
| Register | Searchable on the national EESS register by model number |
| Manufacturer | Jin Xin Yu Power (Shenzhen) Supply Co., Ltd |
Customer FAQs
Q: Why is a 48V scooter charger rated 54.6V?
A: A 48V lithium battery is made of 13 cells in series and is full at 54.6V, so 48V scooters use a 54.6V charger. The 48V figure is the battery's nominal voltage.
Q: Can I use it on my 52V scooter?
A: No. A 52V battery needs a 58.8V charger. Check the output voltage on your original charger label.
Q: Can I leave it plugged in overnight?
A: The charger stops at 54.6V, but we still recommend unplugging once the light turns green and not leaving any lithium battery charging unattended.
